RACE Level 2 J1772 EV Charger | 240V 48Amp Smart Electric Car Charger
Original price was: $419.00.$409.00Current price is: $409.00.
Free Shipping

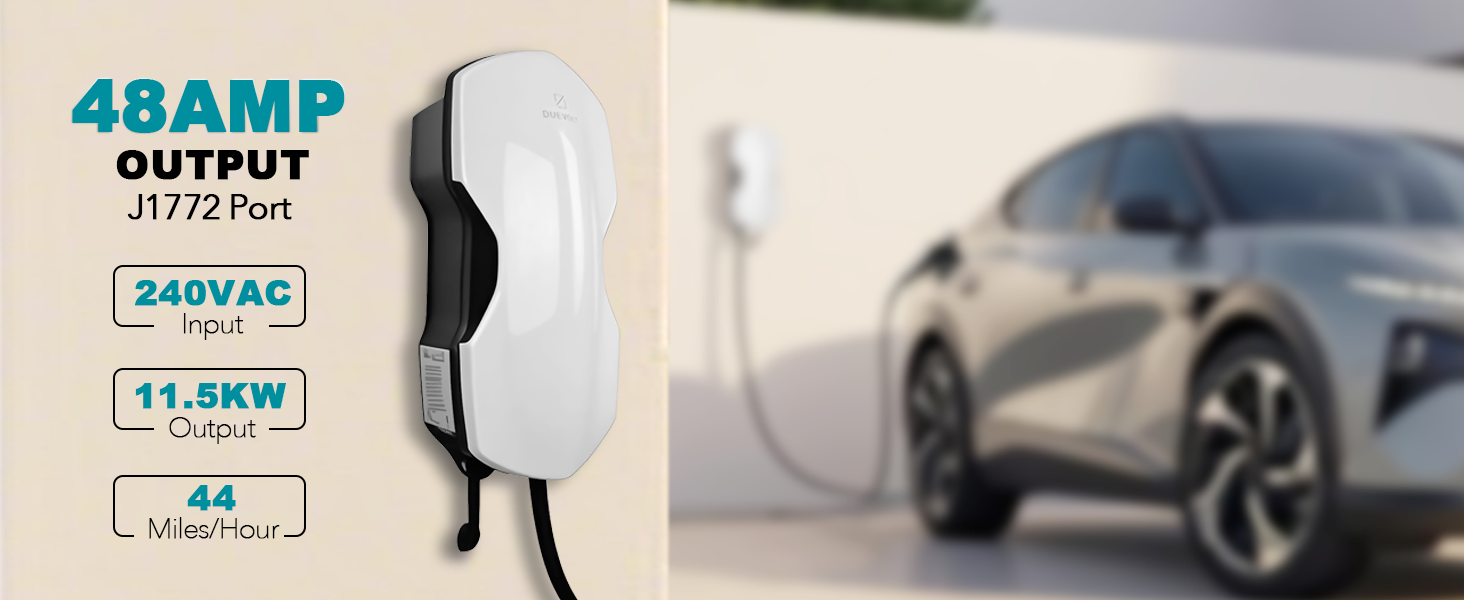

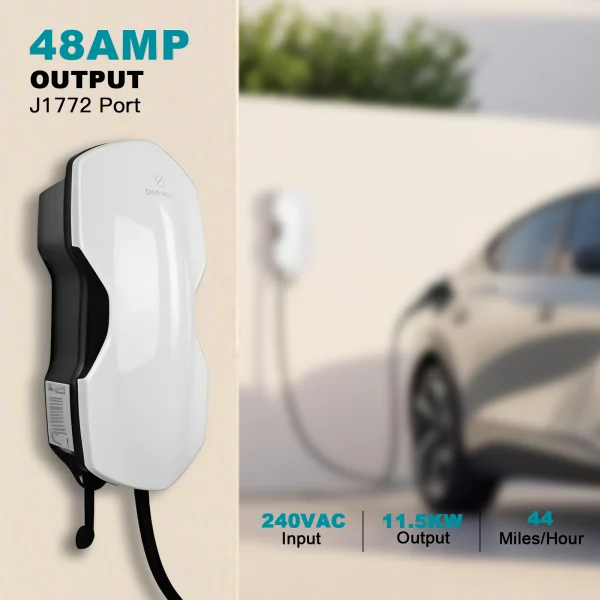

The DUEVOLT RACE 11.5kW Level 2 J1772 EV Charger offers high-performance home charging with a sleek, modern design. Compatible with nearly all Electric Vehicles (EV) and Plug-In Hybrid Electric Vehicles (PHEV), this charger supports both wall-mounted and pedestal installation, providing a durable and stylish solution for residential use in the US.
- High-Performance Design: Modern and sleek look suitable for any home setting.
- Fast Charging: Delivers up to 11.5kW of power (240V, 48A) for rapid and efficient home charging.
- Smart Control: Monitor and control your charging through the DUEVOLT app with BLE, WiFi, and 4G connectivity.
- Flexible Installation: Supports both wall-mounted and pedestal installation, adapting to various home setups.
- Durable and Safe: IP66 ingress protection ensures the charger is dustproof and waterproof, suitable for both indoor and outdoor use.
- Multiple Charging Methods: Includes code scanning, RFID, and Plug&Play options for versatile charging experiences.
- Comprehensive Safety: Equipped with multiple safety protections and an emergency stop button to ensure safe operation.
Specification
| Item | J4 |
|---|---|
| Enviromental Indicators | |
| Output Rating | 11.5 kw |
| output Voltage | 240V |
| Max Output Current | 48A |
| Power Conversion Efficienty | ≥99% |
| Connector Options | J1772/Tesla |
| Cable Length | 16 Feet |
| Electrical Input | |
| Input Voltage | 240VAC±15% |
| Frequancy | 60Hz |
| Power Factor | >0.99 |
| Wiring | L+N+PE |
| Safety and Function Feature | |
| Display | LED |
| Communication | R45,J G,4 Wi-Fi |
| Communication Protocol | OCPP1.6J, 2.0.1J |
| Bluetooth/Wifi | Bluetooth / WFi-i 2.4G |
| Safety Features | Over Current, Orve Voltage, Under Voltage, Short Circuit, Over Temperature Protections, Emergency Stop |
| RCD | RCD Type B |
| Surge Protection | 20KA |
| Power Measurement Accuracy | 1% |
| Access Control | APP/RFID/Plug & Play |
| RFID | ISO/IEC 14443A/B, Mifare |
| Safety Compliance | FCC, ETL |
| Other Function | OTA |
| Safety and Operational Ratings | |
| Dimensions | 208mm × 153mm X 418mm |
| Net Weight | 4.12kg |
| Protection Degrees | IP55 |
| Operating Temperature | -30°C~50°C |
| Storage Temperature | -40°C~70°C |
| Power Cooling | Natural air cooled |
| Working/Storage Humidity | ≤95% |
| Altitude | ≤2000m |
| Noise | ≤40db |
| Mounting Options | Bracket-mounted/Wall-mounted |
