RACE Level 2 J1772 EV Charger | 240V 40Amp Smart Electric Car Charger
$399.00 Original price was: $399.00.$389.00Current price is: $389.00.
Free Shipping

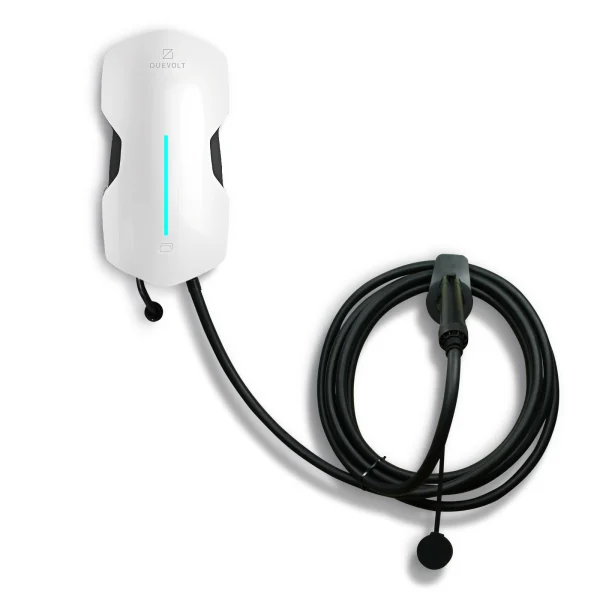

The DUEVOLT RACE 9.6kw Level 2 J1772 EV Charger delivers reliable home charging with a sleek, modern design. Compatible with nearly all Electric Vehicles (EV) and Plug-In Hybrid Electric Vehicles (PHEV), this charger supports both wall-mounted and pedestal installation, providing a versatile and durable solution for residential use in the US.

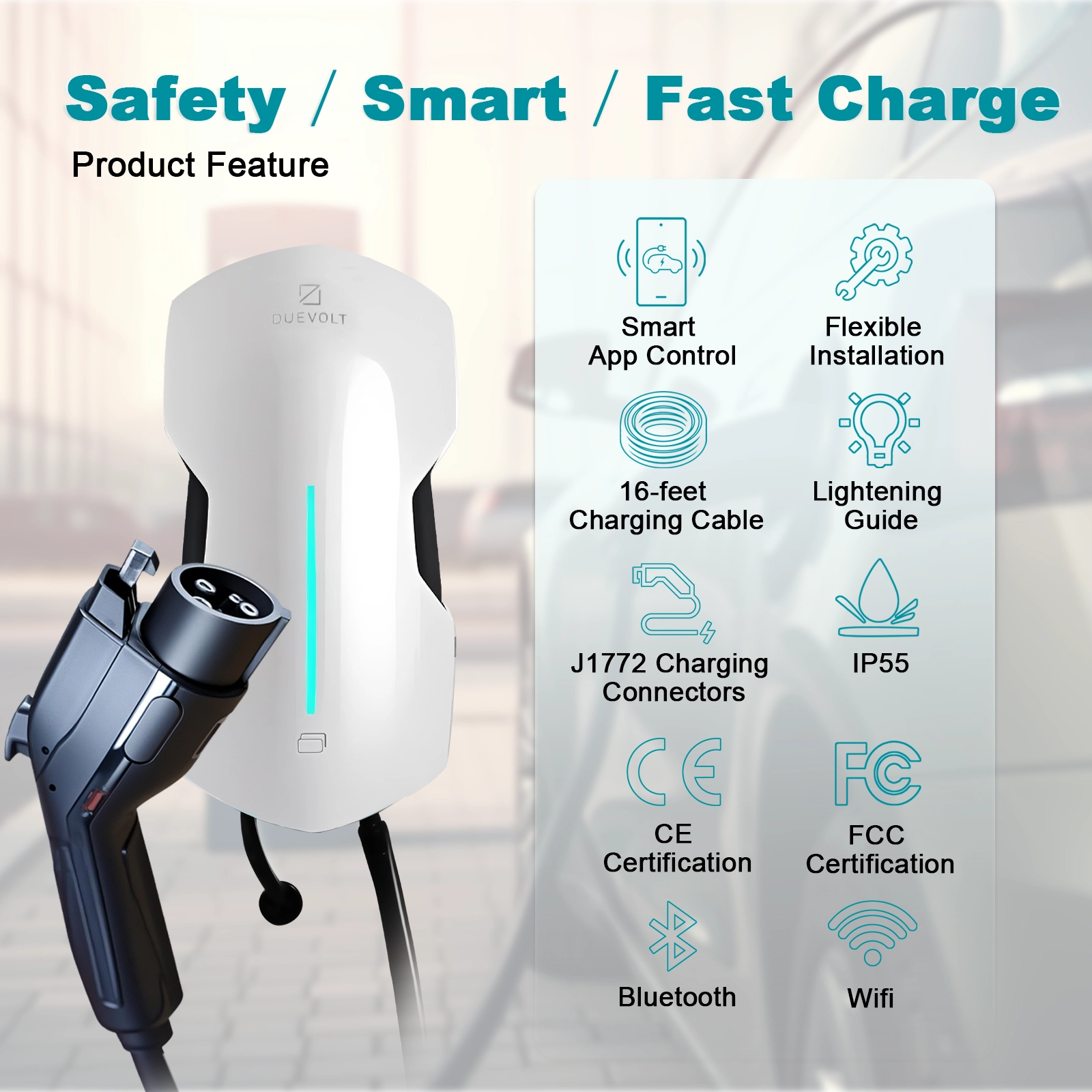

- High-Performance Design: Modern and sleek appearance suitable for any home environment.

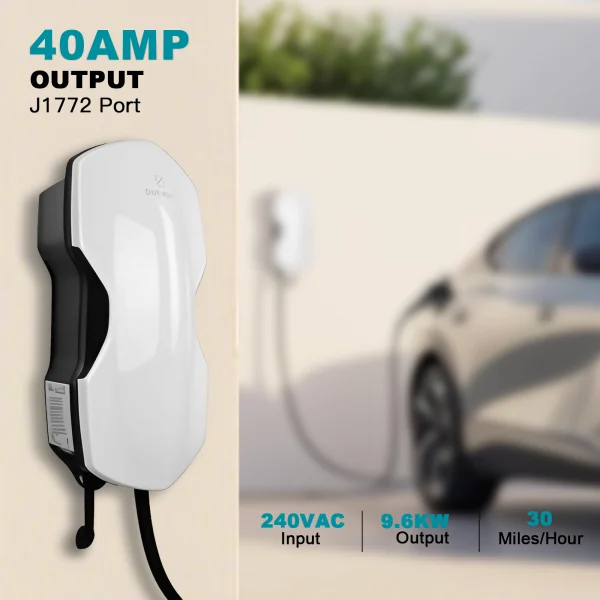

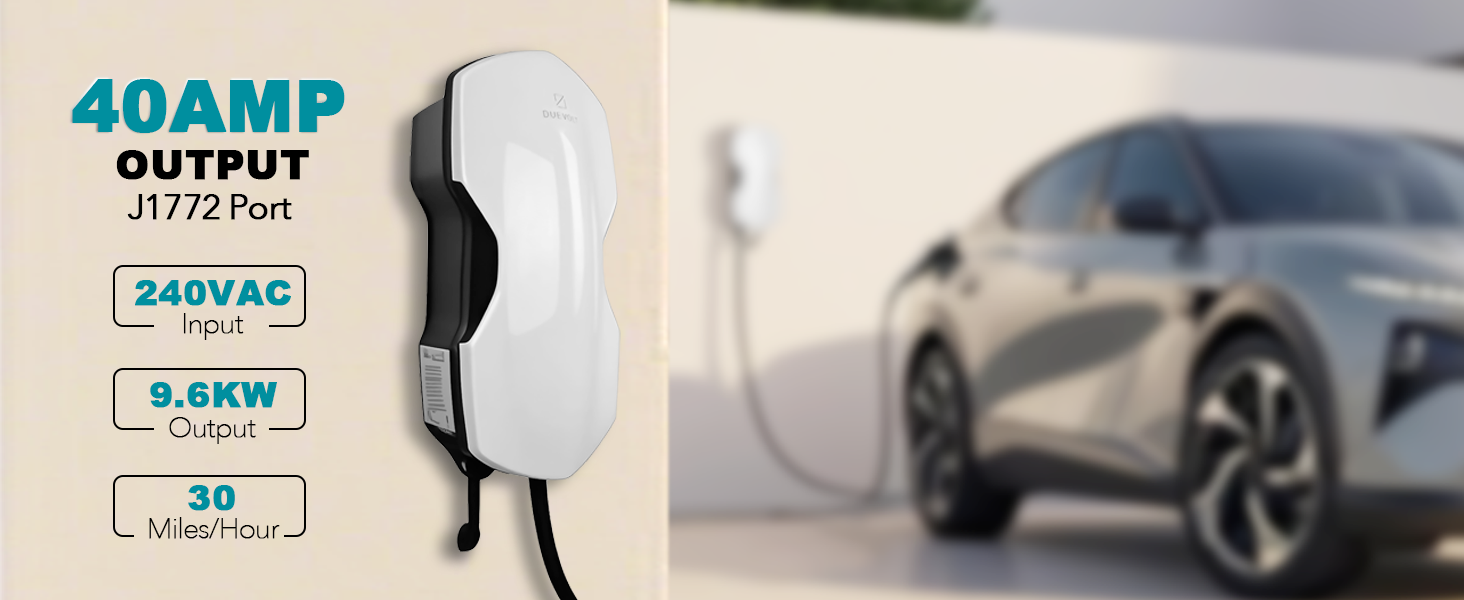

- Efficient Charging: Delivers up to 9.6kW of power (240V, 40A) for efficient and reliable home charging.
- Smart Control: Monitor and control your charging through the DUEVOLT app with BLE, WiFi, and 4G connectivity.

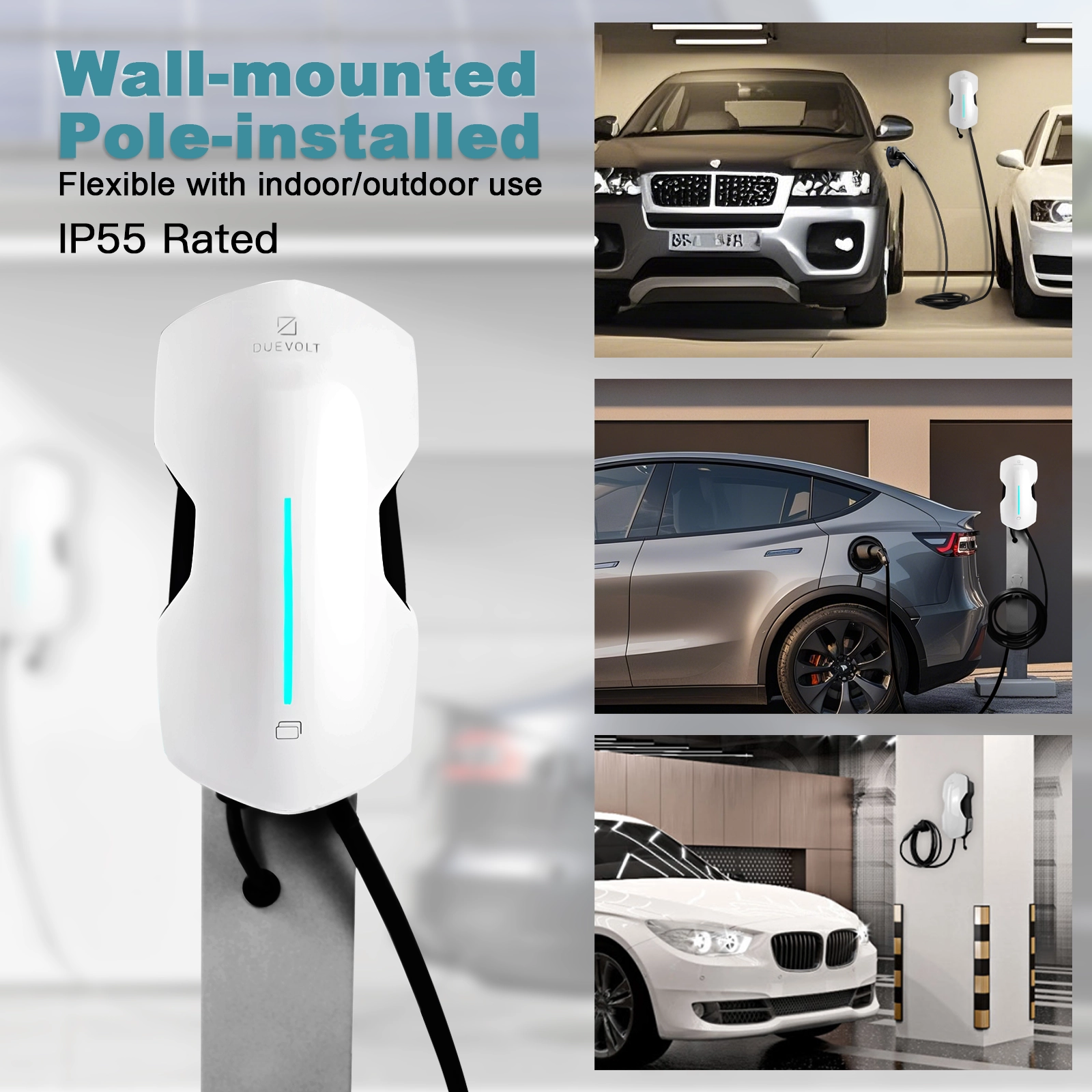

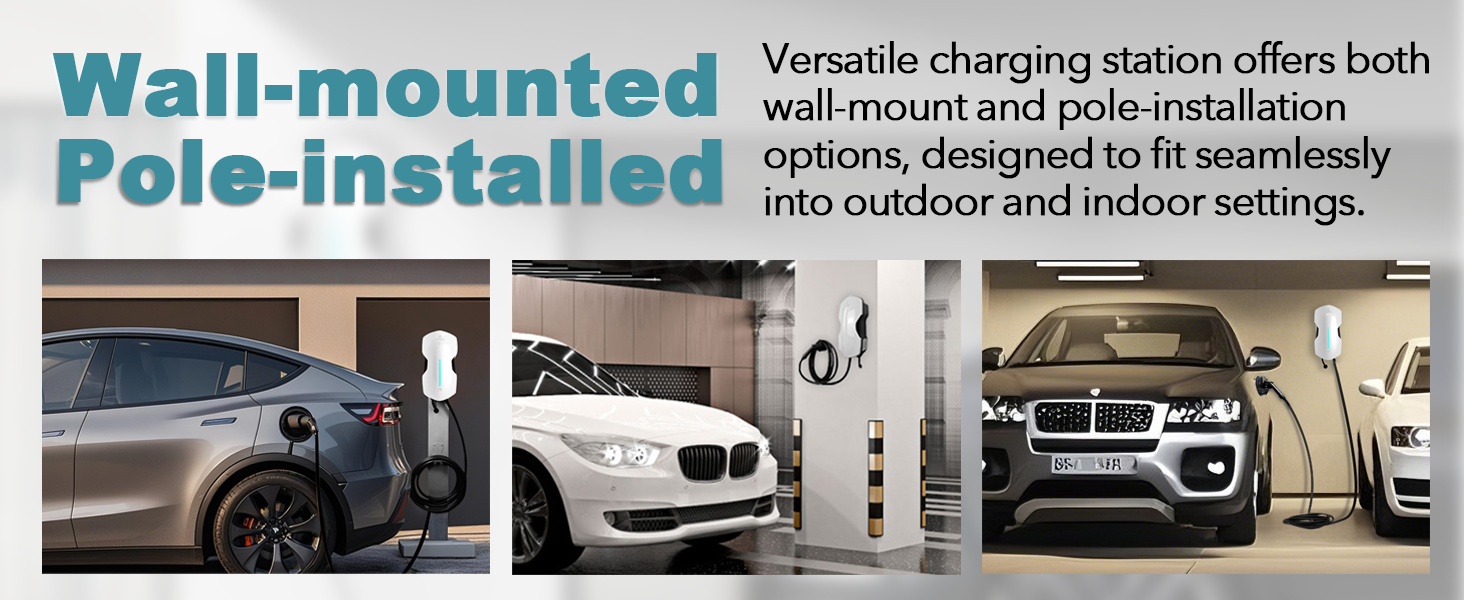

- Flexible Installation: Supports both wall-mounted and pedestal installation, adapting to various home setups.
- Durable and Safe: IP66 ingress protection ensures the charger is dustproof and waterproof, making it ideal for indoor and outdoor use.
- Multiple Charging Methods: Includes code scanning, RFID, and Plug&Play options for flexible charging experiences.
- Comprehensive Safety: Equipped with multiple safety protections and an emergency stop button for safe and secure charging.
Specification
Item | J4 |
---|---|
Enviromental Indicators | |
Output Rating | 9.6 kw |
output Voltage | 240V |
Max Output Current | 40A |
Power Conversion Efficienty | ≥99% |
Connector Options | J1772 |
Cable Length | 16 Feet |
Electrical Input | |
Input Voltage | 240VAC±15% |
Frequancy | 60Hz |
Power Factor | >0.99 |
Wiring | L+N+PE |
Safety and Function Feature | |
Display | LED |
Communication | R45,J G,4 Wi-Fi |
Communication Protocol | OCPP1.6J, 2.0.1J |
Bluetooth/Wifi | Bluetooth / WFi-i 2.4G |
Safety Features | Over Current, Orve Voltage, Under Voltage, Short Circuit, Over Temperature Protections, Emergency Stop |
RCD | RCD Type B |
Surge Protection | 20KA |
Power Measurement Accuracy | 1% |
Access Control | APP/RFID/Plug & Play |
RFID | ISO/IEC 14443A/B, Mifare |
Safety Compliance | FCC, ETL |
Other Function | OTA |
Safety and Operational Ratings | |
Dimensions | 208mm × 153mm X 418mm |
Net Weight | 4.12kg |
Protection Degrees | IP55 |
Operating Temperature | -30°C~50°C |
Storage Temperature | -40°C~70°C |
Power Cooling | Natural air cooled |
Working/Storage Humidity | ≤95% |
Altitude | ≤2000m |
Noise | ≤40db |
Mounting Options | Bracket-mounted/Wall-mounted |
