A Practical Guide to NEMA 14-50 and Alternative 240V EV Charging Outlets
If you’re planning to install a Level 2 EV charger at home, you’ll almost certainly encounter the term NEMA 14-50. It’s the most commonly used 240V outlet for plug-in EV chargers in North America. But it’s not the only one.
This guide breaks down what NEMA 14-50 is, how it compares to other 240V outlet types like 6-50, 14-30, and 10-30, and how to choose the right one for your home.
📘 If you need to decode what each Nema number stands for, you may refer to : What is a NEMA Plug? Understanding Outlet Types for EV Charging and Home Use

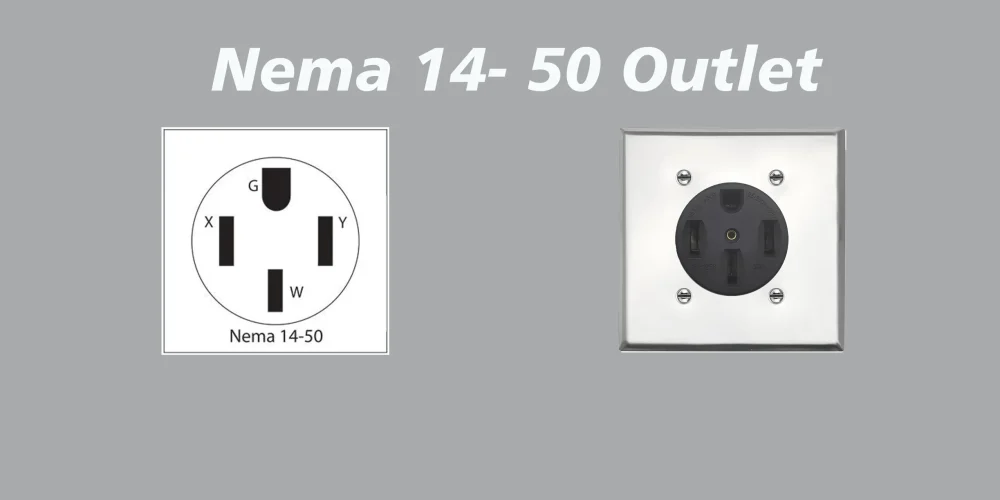

1. What Is a NEMA 14-50 Outlet?
- Voltage: 240V
- Amperage: 50A circuit (usually set to 40A continuous for EVs)
- Wires: 4 (2 hot, 1 neutral, 1 ground)
- Neutral Required? Yes
- Common Uses: EV charging, RV parks, electric ranges
NEMA 14-50 outlets are widely supported by EVSE manufacturers. Many portable Level 2 chargers are designed to plug directly into them, and they’re one of the most common requests electricians receive for EV installs.
2. Why Is NEMA 14-50 So Popular for EV Charging?
- Compatibility: Most EVSEs support 14-50 plug models out of the box
- Code-Friendly: Supports GFCI breakers as required by NEC 2020+
- Power Capacity: Supports 32A to 40A continuous charging—enough for most EVs
- Flexibility: Can also be used for RVs or ranges if needed later
🔌 Tip: The NEC limits continuous load to 80% of breaker rating, so a 50A breaker delivers up to 40A for EVSE.
3. What About Other 240V Outlets?
While 14-50 is the most popular, it’s not the only option. Here are other common 240V outlets used in EV installations:
| Outlet | Voltage | Amps | Wires | Neutral? | Common Use | EV Notes |
|---|---|---|---|---|---|---|
| NEMA 6-50 | 240V | 50A | 3 (2 hot + ground) | ❌ | Welders | Compatible with some EVSEs (e.g. Emporia) |
| NEMA 14-30 | 240V | 30A | 4 (2 hot + neutral + ground) | ✅ | Dryers | Acceptable for 24A charging |
| NEMA 10-30 | 240V | 30A | 3 (2 hot + neutral) | ⚠️ No ground | Older dryer circuits | Can be used with caution & adapter |
| NEMA 6-20 | 240V | 20A | 3 (2 hot + ground) | ❌ | AC units | Rare; used for low-power Level 2 |
| NEMA 14-60 | 240V | 60A | 4 (2 hot + neutral + ground) | ✅ | Ranges, commercial | Overkill for most EVs |
⚠️ Important Note on NEMA 10-30:
This older 3-prong outlet lacks a dedicated ground wire. Using it for EV charging may pose serious safety risks, including potential shock hazards if a fault occurs. It is not permitted for new installations under modern electrical codes. If you must use a 10-30 outlet temporarily, consult an electrician and use a certified adapter with proper ground fault protection.
🧠 Summary:
- Use 14-50 for broad compatibility and high power
- Use 6-50 if your EVSE supports it and you don’t need neutral
- Use 14-30 if repurposing a dryer outlet
- Avoid 10-30 unless retrofitting with caution
4. Do I Need a GFCI Breaker?
According to NEC 2020 (Article 210.8), GFCI protection is required for:
- All 125V–250V receptacles in residential garages, including 14-50 and 6-50
That means if you install a 14-50 outlet in your garage, it must be protected by a GFCI breaker—even if your EVSE already has internal protection.
⚠️ GFCI breakers for 50A circuits are expensive (~$100–$150), and can occasionally cause nuisance tripping.
5. Installation Considerations
- Use a dedicated 50A circuit with correct wire size (typically #6 AWG copper)
- Outlet box must be surface-mounted or properly enclosed
- Use AL/CU-rated terminals if using aluminum feeder wire
- Ensure torque specs are followed during installation
📘 Need help choosing wire size? See: Aluminum Wire for EV Charging: When and How to Use It Safely
6. Can I Use an Adapter or Retrofit a Dryer Outlet?
You may be tempted to use an adapter or reuse an old outlet (like a 10-30), but this comes with caveats:
- ✅ Adapters can be used only if properly rated, UL-listed, and your EVSE supports lower current
- ⚠️ 10-30 outlets lack ground and are not code-compliant for new installs
- ⚠️ 6-50 and 14-50 are not interchangeable—never force a mismatched plug
When in doubt, hire a licensed electrician.
7. Conclusion
For Level 2 EV charging, NEMA 14-50 is the most versatile and future-proof outlet available. It delivers fast charging, wide compatibility, and satisfies most code requirements when installed correctly.
That said, other options like 6-50 or 14-30 may be better for retrofit installations or when panel capacity is limited.
📘 To understand the basics of how these plugs are categorized, go back to our overview: What is a NEMA Connector?
