A Practical Look at NEMA 10-30 Dryer Outlets for EV Charging Safety and Compatibility
If you’ve recently purchased an electric vehicle (EV), you might be wondering whether you can simply plug it into your existing dryer outlet to save on installation costs. Many homes—especially older ones—have 240V outlets already in place, most commonly the NEMA 10-30 or NEMA 14-30, originally intended for electric dryers. But is the NEMA 10-30 outlet safe and appropriate for EV charging?
In this guide, we’ll walk through the differences between dryer outlet types, explain the risks and limitations of NEMA 10-30, and help you determine if it’s a viable short-term charging solution for your EV.

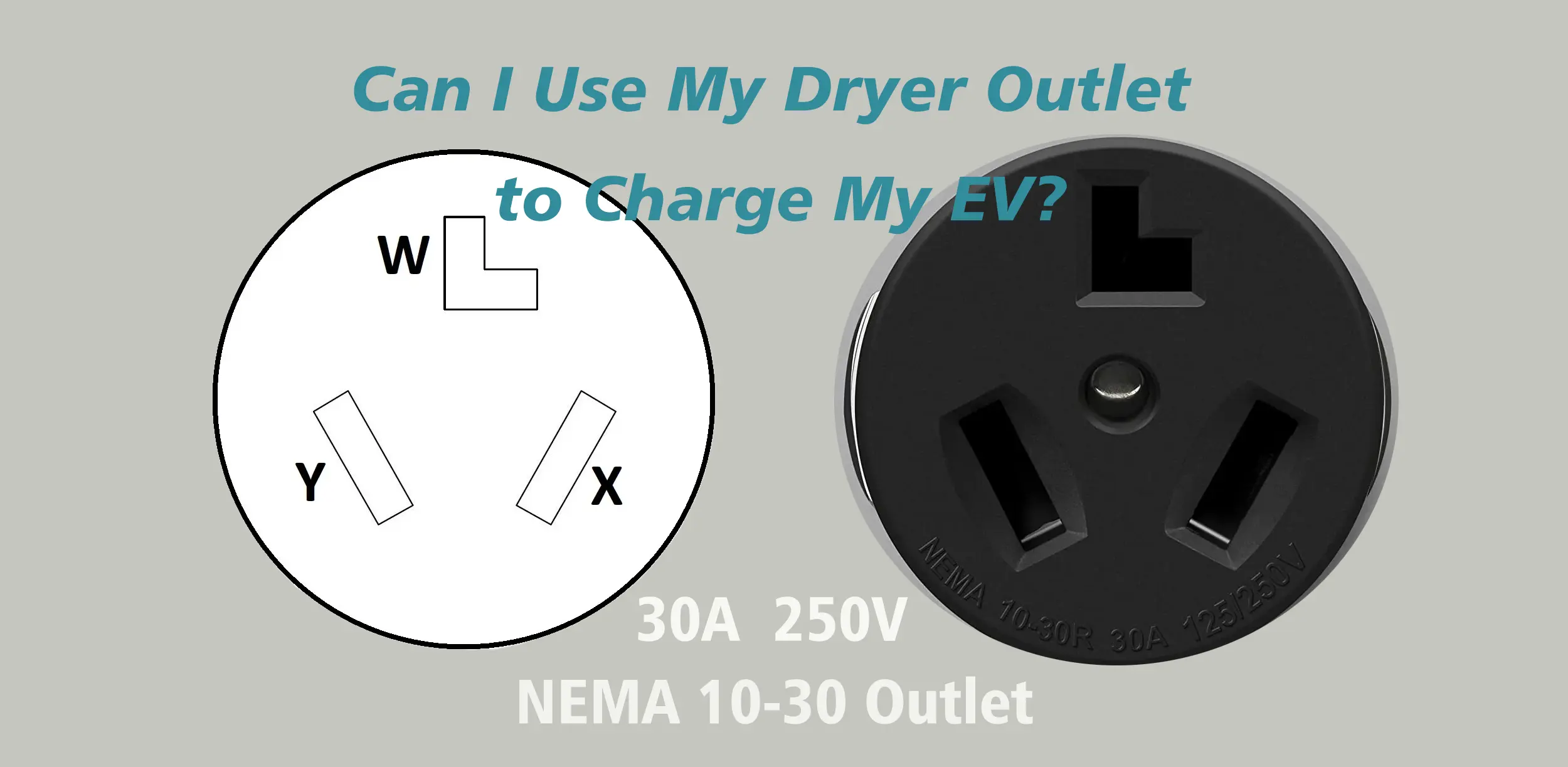

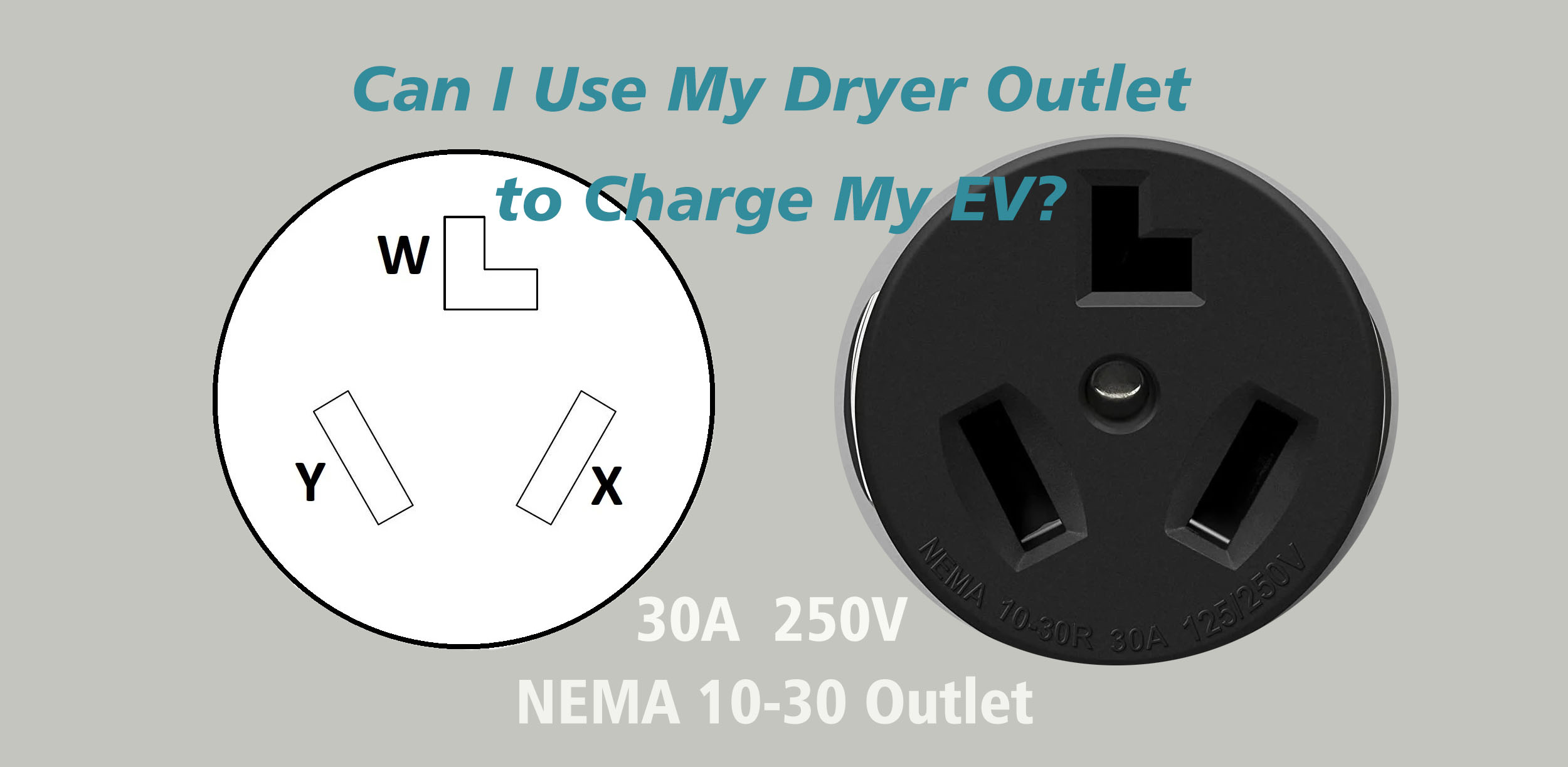

1. What Are the Common Dryer Outlet Types?
| Outlet Type | Voltage | Amps | Wires | Ground? | Code-Compliant Today? |
|---|---|---|---|---|---|
| NEMA 10-30 | 240V | 30A | 3 (2 hot + neutral) | ❌ No | ❌ No (no dedicated ground wire) |
| NEMA 14-30 | 240V | 30A | 4 (2 hot + neutral + ground) | ✅ Yes | ✅ Yes |
The key difference between NEMA 10-30 and 14-30 lies in the presence of a dedicated ground wire. NEMA 10-30 relies on the neutral conductor for grounding—a practice no longer permitted for EV charging under modern code.
2. Can You Charge from a NEMA 10-30 Dryer Outlet?
Yes—but only under limited and cautious conditions:
✅ If You Have a NEMA 14-30 Outlet:
- Grounded and modern
- Compatible with many EVSEs or adapters
- Limited to 24A max (80% of 30A breaker)
⚠️ If You Have a NEMA 10-30 Outlet:
- Technically possible with adapters, but not recommended and not code-compliant for EV charging.
- No dedicated ground wire → serious shock hazard if neutral fails (floating neutral may energize the EV case at 120V).
- GFCI protection cannot detect this type of failure, because the issue is with the reference point itself (neutral floating), not a current imbalance.
- New installations of 10-30 for EV charging are prohibited by the NEC.
- If reuse is considered, consult a licensed electrician and only proceed after confirming all safety conditions—including main panel bonding and proper wiring integrity.
- The safest choice is always to upgrade to a 14-30, 6-30, or hardwired connection with proper grounding.
3. What Are the Risks of Using a NEMA 10-30 Outlet?
| Risk | Description |
|---|---|
| ⚡ No Ground Path | EVSE housing may become energized if a fault occurs |
| ❌ Code Violation | NEC requires separate ground for EV charging; 10-30 doesn’t comply |
| 🔥 Adapter Danger | Inexpensive adapters may overheat or fail silently |
| 💡 Mislabeling | Users may not realize they have a 10-30 instead of 14-30 and assume false safety |
Additional High-Risk Scenarios to Avoid:
- Subpanel-fed circuits: Neutral and ground are separated by code in subpanels. A fault in the neutral between the main panel and subpanel may cause the neutral bus to float at high voltage, putting your EV’s chassis at lethal potential.
- Splitters sharing neutral between dryer and EVSE: If the dryer runs current through the neutral while the EVSE uses the same line as ground, the neutral may carry dangerous voltage.
- Extension cords between rooms: This violates code and introduces fire and electrocution risks, with poor grounding and no GFCI protection.
⚠️ Even if your setup seems to “work,” these scenarios are well-known failure modes that typical EVSE protections cannot detect or prevent.
⚠️ Safety First: Always confirm your outlet type before plugging in any EV charger. When in doubt, consult a licensed electrician.
4. What If I Want to Use My Dryer and Charge My Car?
It’s common to find older homes with just a single 240V dryer outlet available—often a NEMA 10-30 with no dedicated ground. However, due to serious safety risks, including the potential for floating neutral and vehicle chassis energization, we strongly recommend not using a 10-30 outlet for EV charging, even temporarily.
Recommended Solutions:
| Option | Why It’s Safer | Notes |
| Upgrade to a NEMA 14-30 or 6-30 outlet | Adds a proper ground conductor; fully compliant with NEC for EV charging | 14-30 requires four wires (2 hots, neutral, ground); 6-30 uses two hots + ground if your EVSE doesn’t need neutral |
| Install a Smart Switch or Circuit Sharing Device (e.g., NeoCharge, Splitvolt) | Alternates power between your dryer and EVSE without sharing neutral simultaneously | Must be UL-listed or ETL-certified; confirm EVSE compatibility |
| Hardwire your EVSE (if supported by your charger) | Allows direct connection with proper grounding; may enable safe repurposing of neutral as ground in certain main panel-fed circuits (requires NEC 250.119(B) compliance) | Only consider under professional electrician guidance |
| Add a Dedicated Circuit for Your EV Charger | Safest and most future-proof solution; ensures correct wire sizing, GFCI protection, and code compliance | May involve higher upfront costs but ensures peace of mind |
5. Better Alternatives to NEMA 10-30 Dryer Outlets for EV Charging
If you plan to charge your EV regularly, consider upgrading to one of these safer, grounded 240V outlets:
| Outlet Type | Max Amps (EV Use) | Grounded? | GFCI Required? | Best For |
|---|---|---|---|---|
| NEMA 14-30 | 24A | ✅ Yes | ✅ Yes | Temporary Level 2 setups, hybrids |
| NEMA 14-50 | 40A | ✅ Yes | ✅ Yes | Full-speed charging at home |
| NEMA 6-50 | 40A | ✅ Yes | ✅ Yes | Cost-effective installs without neutral |
📘 Explore options: NEMA 14-50 and Other 240V Outlets for EV Charging: What You Need to Know
6. Conclusion
While NEMA 10-30 dryer outlets may appear to be a convenient EV charging solution, they lack a dedicated ground wire and pose a serious safety risk. For this reason, they are not permitted for new EV charging installations.
If you already have a NEMA 10-30, use extreme caution and only consider it for short-term, low-current use with certified adapters and proper GFCI protection. The better long-term approach is to install a dedicated, grounded 240V outlet like NEMA 14-30, 14-50, or 6-50.
For more on EV-safe NEMA connectors, read: What is a NEMA Connector?
