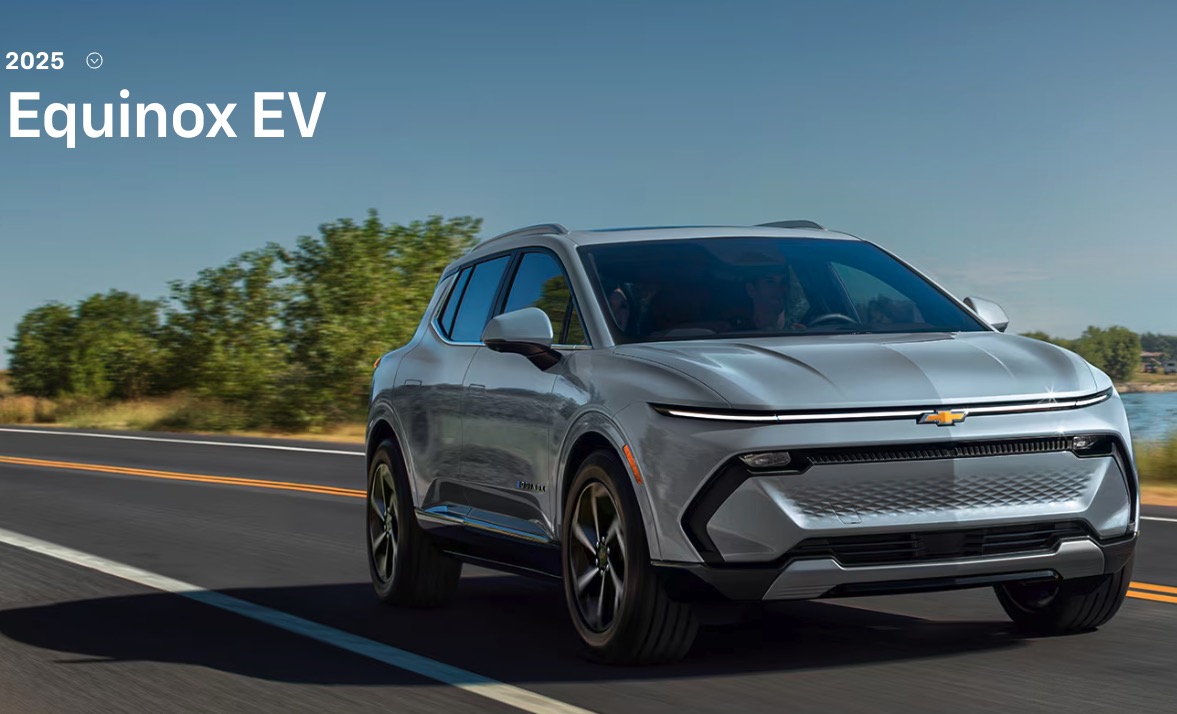

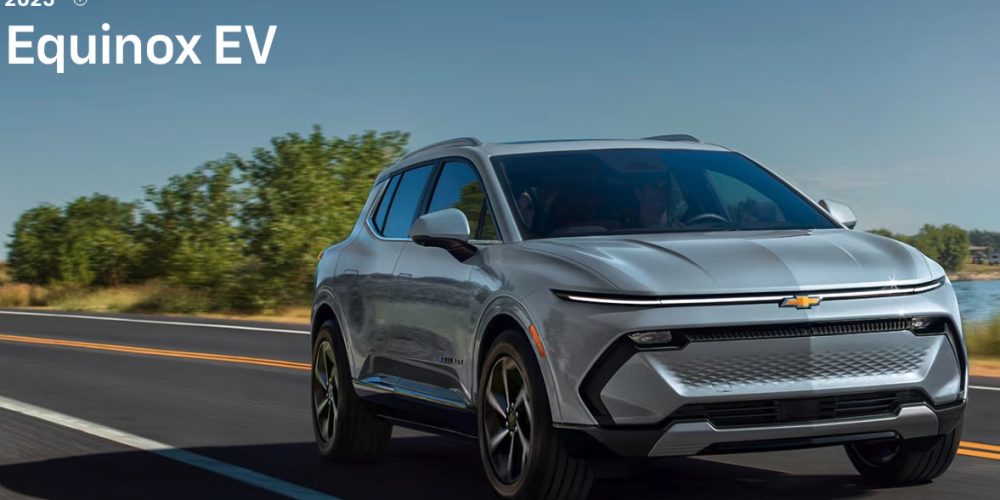

The Chevy Equinox EV is Chevrolet’s latest fully electric SUV, designed to offer an efficient and practical driving experience for everyday users. With five available trims (1LT, 2LT, 2RS, 3LT, and 3RS), the Equinox EV features an 85 kWh battery and a range of up to 319 miles on a full charge. This makes it one of the most capable electric SUVs in its class, offering a balance between affordability, range, and charging convenience.
For EV owners, charging accessibility and speed are key factors. The Equinox EV supports multiple charging options, including home charging (Level 1 & Level 2) and DC fast charging, ensuring flexibility for different driving needs. Additionally, thanks to General Motors’ partnership with Tesla, Equinox EV owners can use Tesla Superchargers with a Tesla to CCS1 adapter, greatly expanding charging accessibility across North America.
This guide provides a detailed overview of the charging options, speeds, costs, and how to access Tesla Superchargers, helping Equinox EV owners make the most of their charging experience.
Chevy Equinox EV Charging Options
The 2024 Chevy Equinox EV comes with a J1772 (for AC charging) and CCS1 (for DC fast charging) port, making it compatible with a wide range of public and home charging stations across North America.
Each trim of the Equinox EV supports a maximum AC charging power of 11.5 kW and DC fast charging up to 150 kW, allowing for efficient charging at home and on the road. Below is a breakdown of the vehicle’s charging capabilities:
- AC Charging (Level 1 & Level 2): Supports up to 11.5 kW, which allows for faster charging at home when using a Level 2 charger.
- DC Fast Charging: Capable of charging at 150 kW, allowing for rapid charging sessions at public fast-charging stations.
Chevy Equinox EV Charging Speeds
The charging speed of the Equinox EV varies based on the type of charger used. Below is a detailed breakdown of charging times based on different charging levels.
Level 1 Charging (120V, NEMA 5-15)
Level 1 charging is the slowest but most accessible option, as it uses a standard 120V household outlet. While convenient for emergency charging, it is not practical for daily use due to its slow charging speed.
Charging Speed
Around 5.5 miles of range per hour.
- 20%-80% Charging Time: 29 hours.
- 0%-100% Charging Time: 48 hours.
- Miles per Charging Time:
- 30 miles: 5.5 hours.
- 100 miles: 18.3 hours.
Key Takeaways:
- Best for low-mileage drivers who can leave the vehicle plugged in overnight.
- Not ideal for long trips due to slow charging speeds.
- Useful as a backup option when no faster charging infrastructure is available.
Level 2 Charging (240V)
Level 2 charging is significantly faster than Level 1 and is the recommended method for home charging. The Equinox EV supports up to 11.5 kW AC charging, making it well-suited for overnight charging at home or extended stops at public charging stations.
Charging Speed
Up to 35.7 miles per hour (at 48A).
- 20%-80% Charging Time: 4.4 hours
- 0%-100% Charging Time: 7.4 hours.
Miles per Charging Time:
- 30 miles: 0.8 hours.
- 100 miles: 2.8 hours.
Key Takeaways:
- Ideal for home charging as it provides a full charge overnight.
- More practical than Level 1 for daily driving needs.
- Requires a dedicated 240V circuit installed by a certified electrician.
DC Fast Charging (CCS1)
DC fast charging is the quickest way to charge the Equinox EV, making it ideal for road trips and long-distance travel. The Equinox EV supports a maximum DC fast-charging rate of 150 kW, allowing for a substantial charge in a short period.
CCS1 Charging Station (50 kW)
Charging Speed:
Around 2.6 miles per minute
- 20%-80% Charging Time: Approximately 61.2 minutes
Miles per Charging Time:
- Adding 30 miles takes about 11.6 minutes
- Charging 100 miles takes about 38.7 minutes
CCS1 Charging Station (150 kW)
Charging Speed:
Around 18.1 miles per minute
- 20%-80% Charging Time: Around 8.7 minutes
Miles per Charging Time:
- Adding 30 miles takes about 1.7 minutes
- Charging 100 miles takes about 5.5 minutes
Charging Costs
Charging costs vary based on electricity rates and charging locations. Below is an estimated cost comparison for charging the Chevy Equinox EV at home and public charging stations, based on an average electricity rate of $0.176 per kWh.
Can the Chevy Equinox EV Charge at Tesla Superchargers?
Yes, the 2024 Chevy Equinox EV can charge at Tesla Superchargers, but it requires an adapter in most cases. As part of GM’s partnership with Tesla, Equinox EV owners can already access Tesla’s NACS Superchargers using a Tesla to CCS1 adapter. Here’s how it works:
- Magic Dock Superchargers: These Superchargers come with a built-in CCS1 adapter, allowing Equinox EV drivers to charge without any extra accessories.
- Tesla Superchargers (with Adapter): Equinox EV owners can use a Tesla to CCS1 adapter to charge at most Tesla Superchargers right now.
Conclusion
The Equinox EV offers a versatile and efficient charging experience, making it a strong contender in the electric SUV market. With support for Level 1, Level 2, and DC fast charging, Equinox EV owners can conveniently charge at home, public stations, and Tesla Superchargers with the right adapter.
If you’re looking to make the most of your Equinox EV’s charging capabilities, having a reliable Tesla to CCS1 adapter is essential. Check out our adapter here to ensure seamless access to Tesla’s vast charging network.
